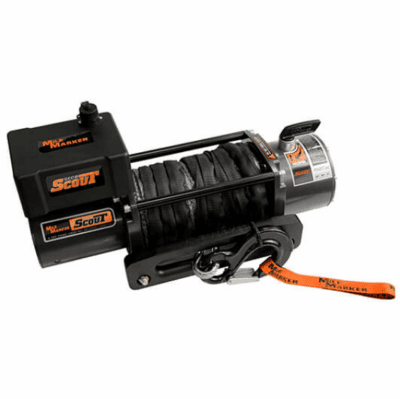

Mile Marker SEC8 Scout Waterproof Electric Winch with Synthetic Rope

Mile Marker SEC8 Scout ES Waterproof Electric Winch with Synthetic Rope
Mile Marker SEC8 Scout ES Waterproof Electric Winch with Synthetic Rope
Item# 77-53141W
$649.95
Shipping Cost:

Product Description

The fastest, best equipped 8000 pound winch in the industry. Boasting blazing line speeds, a high output series wound motor, 96’of Synthetic Rope, and an anodized aluminum hawse fairlead, this is the essential winch for overland explorers and competition rigs seeking to quench their adventurous thirst as they traverse the globe’s harshest conditions. It is completely submersible. Backed by Mile Marker’s two year warranty (one on the solenoid), and 30 years of manufacturing expertise, if you are willing to go, let the SCOUT lead the way.

The Mile Marker SEC8 Scout Waterproof Electric Winch with Synthetic Rope Features

Fully Sealed Winch

Fast Line Speed

Series Wound Motor

Multi-Mount Solenoid

Clockable Gear Housing

Load Holding Brake

Marine Grade Remote Control Connectors

Corrosion-Free Construction

Submersible, 500 Amp Solenoid



The The Mile Marker SEC8 Scout Waterproof Electric Winch with Synthetic Rope Specifications

Part Number 77-53141W

Rated line pull 8000 lbs (3629 Kg)

Gear Train 3 Stage Planetary

Gear Ratio 152:1

Motor Series Wound, 4.8 hp (3.6 KW), 12 V

Control Pendant Power-In, Power-Out Remote, 12’ (3.7 m)

Dimensions 21.50” X 6.25” X 8.00”n(546.1 mm X 158.8 mm X 203.2 mm)

Synthetic Rope 5/16” X 100’ (nominal 15,000 lbs, 6804 kg)n(7.94 mm X 28. 5 m)

Drum Size 2.5” X 9” (63.5 mm X 228.6 mm)

Net weight 57.5 lbs (26.1 kg)

Bolt Pattern 4 Bolt Pattern, 4.5” X 10”,n(114.3 mm X 254 mm)
